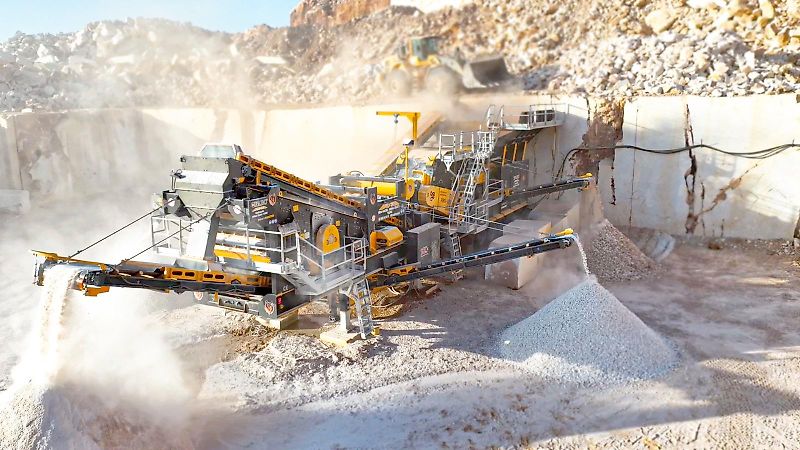

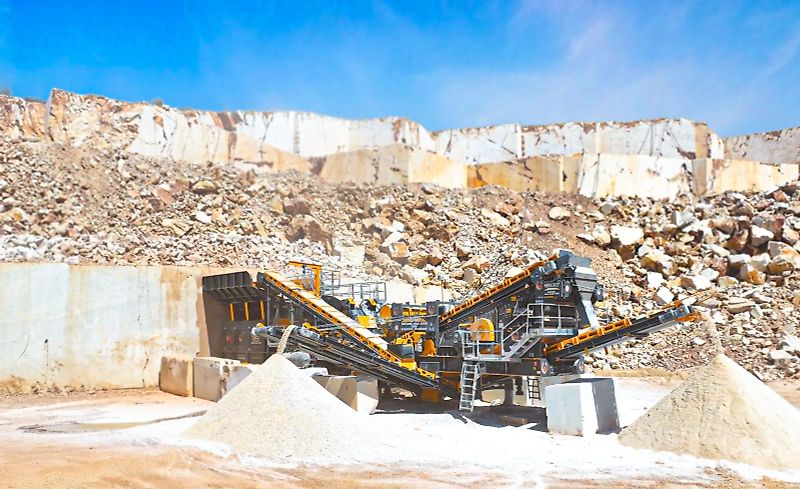

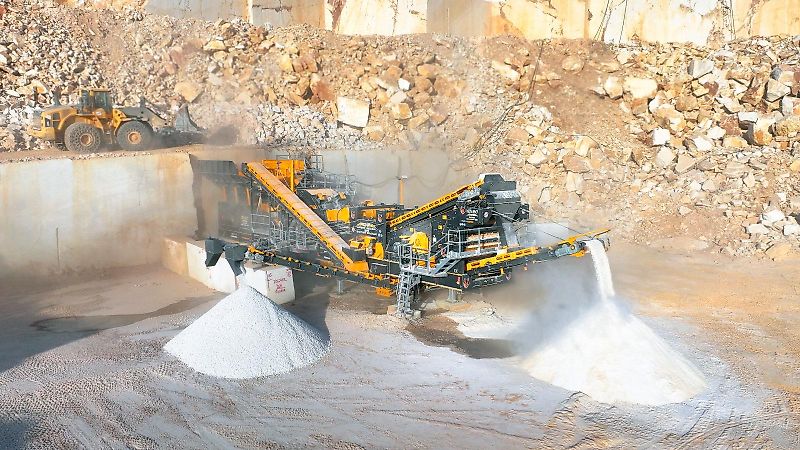

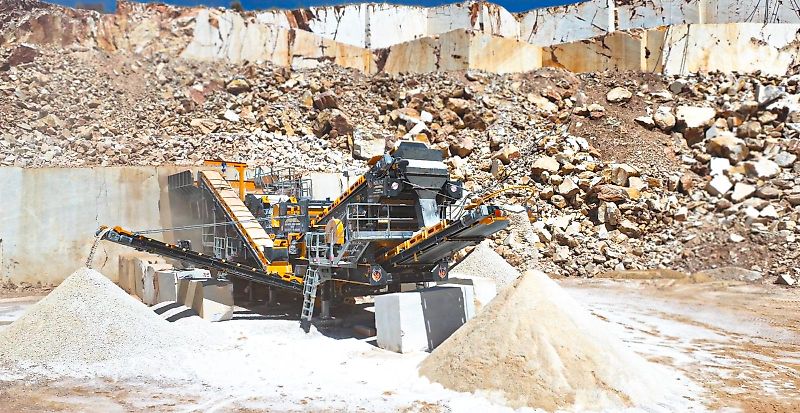

Fabo PRO-150 MOBILE CRUSHER | WOBBLER FEEDER

Papildomi aprašymai

The bunker of the PRO-150 Mobile crushers has been developed by our engineers as user-oriented to operate with high-level efficiency.
The vibration speed of the vibrating feeding bunker is easily guided by the automation system which can be adjusted manually. This feature prevents the bunker from wearing out and provides the user with longer and more efficient usage.
In order to avoid any performance loss due to the damp or muddy material processed in the crusher plants, the wobbler feeder contains all the necessary qualities. While the wobbler feeder has potential to process without any problems for many years. Aslo stands out with easy maintenance feature as well.
The poor quality of material separated in the wobbler feeder is thrown into the bypass belt and therefore user get a high-quality final product. Additionally; if desires, the materials falling into the bypass can be sent directly to the screen thanks to the reversible conveyor in the bypass system under the wobbler feeder.
FABO primary impact crushers are designed to crush soft and medium hard stones with high rotor speed. It is considered as the heart of the mobile system.
With the help of high-speed rotating rotor crushing hammers, the products poured from the feeder are crushed with the help of pallets. Hydraulically adjustable rods allow the products to be obtained in the desired size.
FABO folding type hydraulic belts send the right product to the crusher and the stock area according to customer requests after sorting through the vibrating screen.
With foldable structure, the plant minimizes dimensions of the machine for the transportation. The number of stock belts can change due to customer requests.
10 mm EP 125 4-ply belt elastics moving on twisted sheets perfectly transport the aggregate coming out of the screen to the area desired by the user. Belt elasticity, which produced resistant to wear, offers many years of life without letting customer down.
The flap system is a special system that allows the directly crushed material to be taken from the crusher with the help of the pre-stock belt without being screened in the mesh.
The plant minimizes production time with its unique location just in front of the screen.
